Name: UltraMount Standard Plow Lift Frame, Quadrant &amp; A-Frame Components
Brand: UltraMount Standard Plow Diagrams
SKU: 19173
Price: 2.02 USD
Availability: InStock

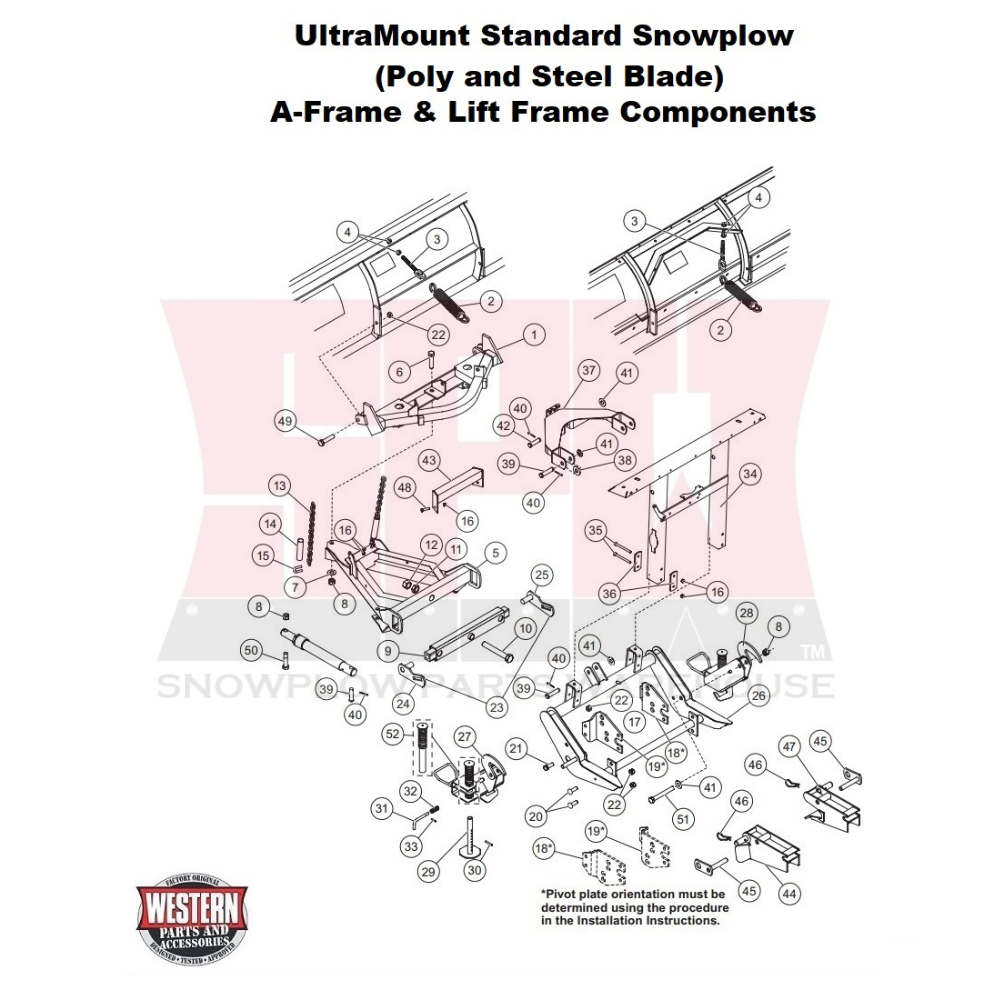

UltraMount Standard Plow Lift Frame, Quadrant & A-Frame Components

Item	Quantity	Product	SKU	Price

2	23039 WESTERN TRIP SPRING quantity	23039 WESTERN TRIP SPRING	23039	$36.15
3	66421 Western 5/8-11X4 Eyebolt Kit quantity	66421 Western 5/8-11X4 Eyebolt Kit	66421	$13.07
4	91416 WESTERN HEX NUT 5/8-11 G5 quantity	91416 WESTERN HEX NUT 5/8-11 G5	91416	$3.47
6	66889 Western Nose Plate Bolt Kit quantity	66889 Western Nose Plate Bolt Kit	66889	$15.52
7	63575 WESTERN FLATWASHER_3/4 HARDENED quantity	63575 WESTERN FLATWASHER_3/4 HARDENED	63575	$1.63
8	91338 WESTERN HEXLOCKNUT_3/4-10 GB TOPRING quantity	91338 WESTERN HEXLOCKNUT_3/4-10 GB TOPRING	91338	$5.59
9	67842-1 WESTERN PIVOT BAR KIT quantity	67842-1 WESTERN PIVOT BAR KIT	67842-1	$261.65
10	67855 WESTERN ULTRA MOUNT PIVOT BOLT KIT quantity	67855 WESTERN ULTRA MOUNT PIVOT BOLT KIT	67855	$29.16
11	67748 WESTERN 1-8 HEX JAM NUT G5 quantity	67748 WESTERN 1-8 HEX JAM NUT G5	67748	$8.77
12	91340 WESTERN 1-8 HEX LOCKNUT GB quantity	91340 WESTERN 1-8 HEX LOCKNUT GB	91340	$11.95
13	49033 WESTERN REPLACEMENT CHAIN ASSY quantity	49033 WESTERN REPLACEMENT CHAIN ASSY	49033	$63.26
15	90453 WESTERN U-BOLT 3/8-16 X 1-5/8 G5, BLACK quantity	90453 WESTERN U-BOLT 3/8-16 X 1-5/8 G5, BLACK	90453	$22.01
16	91333 WESTERN HEXLOCKNUT 3/8-16 GB TOPRING quantity	91333 WESTERN HEXLOCKNUT 3/8-16 GB TOPRING	91333	$5.09
17	67843 WESTERN PIVOT PLATE KIT quantity	67843 WESTERN PIVOT PLATE KIT	67843	$273.54
18	67707 Western Plate Pivot A (96) quantity	67707 Western Plate Pivot A (96)	67707	$148.96
19	67708 Western Plate Pivot B (97) quantity	67708 Western Plate Pivot B (97)	67708	$143.23
20	5572 Western Carriage Bolt 5/8"-11 x 2" G5 quantity	5572 Western Carriage Bolt 5/8"-11 x 2" G5	5572	$5.85
21	90127 Western HexCapscrew 5/8-11X1-1/2 G5 quantity	90127 Western HexCapscrew 5/8-11X1-1/2 G5	90127	$5.10
22	91337 Western Hexlocknut 5/8"-11 GB Top Ring quantity	91337 Western Hexlocknut 5/8"-11 GB Top Ring	91337	$4.88
23	66812 WESTERN PIVOT PIN KIT quantity	66812 WESTERN PIVOT PIN KIT	66812	$90.58
24	67974 WESTERN ULTRA MOUNT DRIVERSIDE PIVOT PIN quantity	67974 WESTERN ULTRA MOUNT DRIVERSIDE PIVOT PIN	67974	$41.84
25	67977 WESTERN ULTRA MOUNT PASSENGER SIDE PIVOT PIN quantity	67977 WESTERN ULTRA MOUNT PASSENGER SIDE PIVOT PIN	67977	$42.08
27	72618 WESTERN ULTRA MOUNT STAND ASSEMBLY DRIVER SIDE quantity	72618 WESTERN ULTRA MOUNT STAND ASSEMBLY DRIVER SIDE	72618	$407.26
28	72617 WESTERN ULTRA MOUNT STAND ASSEMBLY PASSENGER SIDE quantity	72617 WESTERN ULTRA MOUNT STAND ASSEMBLY PASSENGER SIDE	72617	$407.26
29	67847 WESTERN SHOE ASSEMBLY KIT - ULTRA MOUNT STAND quantity	67847 WESTERN SHOE ASSEMBLY KIT - ULTRA MOUNT STAND	67847	$57.42
30	67635 WESTERN PIN ROLL 1/4 X 2 BP quantity	67635 WESTERN PIN ROLL 1/4 X 2 BP	67635	$1.82
31	67844 Western Stand Lock Pin Kit quantity	67844 Western Stand Lock Pin Kit	67844	$18.25
32	67726 WESTERN SPRING LOCK PIN, STAND quantity	67726 WESTERN SPRING LOCK PIN, STAND	67726	$2.54
33	67700 WESTERN 3/16 X 1-1/4 ROLL PIN quantity	67700 WESTERN 3/16 X 1-1/4 ROLL PIN	67700	$2.85
39	93063K WESTERN CLEVIS PIN KIT 3/4 X 3-1/4 quantity	93063K WESTERN CLEVIS PIN KIT 3/4 X 3-1/4	93063K	$8.99
40	91911K WESTERN COTTER PIN - 5/32" quantity	91911K WESTERN COTTER PIN - 5/32"	91911K	$1.48
41	91147 WESTERN FLATWASHER 3/4 TYPE A NARROW quantity	91147 WESTERN FLATWASHER 3/4 TYPE A NARROW	91147	$0.89
42	64617 WESTERN CLEVIS PIN KIT 3/4 X 3 quantity	64617 WESTERN CLEVIS PIN KIT 3/4 X 3	64617	$9.04
44	76722 Western UltraMount Receiver Kit Drivers Side quantity	76722 Western UltraMount Receiver Kit Drivers Side	76722	$328.21
45	67665/42498 WESTERN DISCONTINUED SEE P/N 42498 quantity	67665/42498 WESTERN DISCONTINUED SEE P/N 42498	67665	$58.12
46	91965K-1 WESTERN HAIRPIN COTTER 5/32" quantity	91965K-1 WESTERN HAIRPIN COTTER 5/32"	91965K-1	$3.61
47	76718 Western UltraMount Receiver Kit Passenger Side quantity	76718 Western UltraMount Receiver Kit Passenger Side	76718	$328.21
48	90040 WESTERN HEXCAPSCREW 3/8-16x1-1/4 G5 ZYC quantity	90040 WESTERN HEXCAPSCREW 3/8-16x1-1/4 G5 ZYC	90040	Original price was: $2.78.Current price is: $2.02.
49	90132 WESTERN HEXCAPSCREW 5/8-11X3 G5 quantity	90132 WESTERN HEXCAPSCREW 5/8-11X3 G5	90132	$6.53
